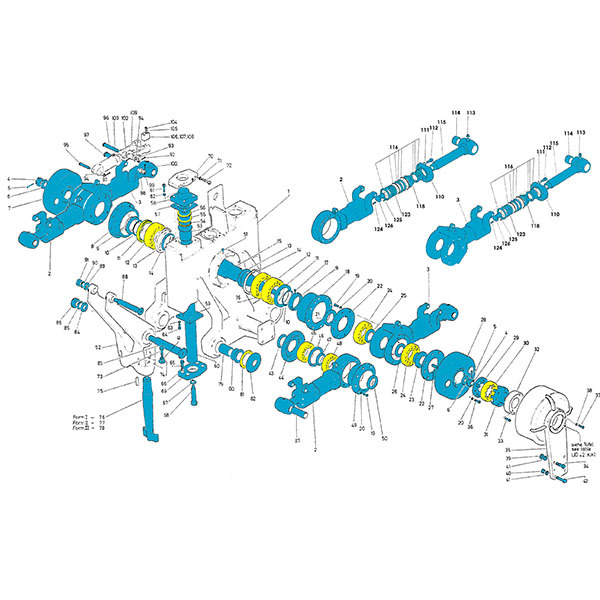

Pos.
No.
|
Description
|
Part Number
|
Req’d
|
|
2
|
Closing cylinder
|
JT30.04
|
2
|
|
2
|
Cylinder
|
HZSA.201.35,
HZSA.201.52*
|
2
|
|
3
|
Closing cylinder
|
JT30.05
|
2
|
|
3
|
Cylinder
|
HZS-G.201.36,
|
2
|
|
HZS-G.201.53*
|
|||
|
4
|
Castle nut
|
2E22.36
|
2
|
|
5
|
Split pin
|
8X80
|
2
|
|
6
|
Disc
|
2E22.35
|
2
|
|
7
|
Flywheel
|
2E22.10A
|
1
|
|
8
|
Flange
|
DL23.103A
|
1
|
|
9
|
Spacer ring
|
DL23.103 DL23.108
|
2
|
|
10
|
O-Ring
|
98,02X3,53
|
2
|
|
11
|
Seal ring
|
BA130-165-13
|
2
|
|
13
|
Spacer ring
|
DL23.107
|
2
|
|
15
|
Vibration shaft
|
DL23.401
|
1
|
|
17
|
Rivet
|
5X8
|
2
|
|
18
|
Flange
|
DL23.104
|
1
|
|
19
|
Allen-bolt
|
M10X25-8.8
|
96
|
|
20
|
Spring washer
|
10
|
102
|
|
21
|
Spacer ring
|
2E22.04A
|
2
|
|
22
|
Cover
|
2E22.15
|
4
|
|
23
|
Flange
|
2E22.09
|
2
|
|
25
|
Spacer ring
|
2E22.05A
|
2
|
|
26
|
Spacer ring
|
2E22.08A
|
2
|
|
27
|
Fittink key
|
2E22.31
|
4
|
|
28
|
Fly wheel
|
E23.70A
|
1
|
|
29
|
Toothed copling
|
E20.13C
|
1
|
|
31
|
Toothed copling - hydr.pump
|
E20.13A
|
1
|
|
33
|
Hex.bolt
|
M6X16-8.8
|
6
|
|
34
|
Screw
|
G60.45A
|
2
|
|
36
|
Allen-bolt
|
M10X20-8.8
|
6
|
|
37
|
Hex. bolt
|
M12X55-8.8
|
2
|
|
38
|
Spring washer
|
B12
|
2
|
|
39
|
Hex. nut
|
M20X1.5-8
|
2
|
|
40
|
Hex. nut
|
M20-8
|
2
|
|
41
|
Spring washer
|
B20
|
12
|
|
42
|
Hex. bolt
|
M20X75-10.9
|
2
|
|
43
|
Spacer ring
|
2E22.26
|
2
|
|
44
|
Cover
|
2E22.16
|
2
|
|
46
|
Spacer ring
|
2E22.12
|
2
|
|
47
|
Spacer ring
|
2E22.07
|
2
|
|
49
|
Flange
|
2E22.11, DL22.11
|
2
|
|
50
|
Spacer tube
|
2E22.06
|
2
|
|
51
|
Filter
|
FLE-001/4"ZG.1234D
|
2
|
|
53
|
Bush
|
DL12.06
|
4
|
|
57
|
Gasket
|
DL12.08
|
4
|
|
58
|
Cover
|
DL12.05
|
2
|
|
59
|
Cover
|
DL12.51
|
4
|
|
60
|
Guide column
|
E62.03
|
2
|
|
61
|
Allen-bolt
|
M12X30-8.8
|
8
|
|
62
|
Spring washer
|
12
|
8
|
|
63
|
Spring washer
|
8
|
8
|
|
64
|
Allen-bolt
|
M8X20-8.8
|
8
|
|
65
|
Allen-bolt
|
M20X40-8.8
|
8
|
|
66
|
Spring washer
|
20
|
8
|
|
67
|
Spring washer
|
B32
|
2
|
|
68
|
Screw
|
E60.08AAS
|
2
|
|
69
|
Mounting bracket
|
E61.04
|
2
|
|
71
|
Spring washer
|
16
|
4
|
|
72
|
Allen-bolt
|
M16X75-12.9
|
4
|
|
73
|
Hex. bolt
|
M20X50-8.8
|
8
|
|
74
|
Disc
|
2E31.18AOS
|
8
|
|
79
|
Spacer sleeve
|
2E31.02A
|
4
|
|
80
|
Bush
|
2E34.210
|
8
|
|
82
|
Disc
|
2E34.211
|
8
|
|
83
|
Pin
|
2E31.04
|
4
|
|
84
|
Disc
|
2E32.05
|
4
|
|
85
|
Spring washer
|
B42
|
4
|
|
86
|
Hex. nut
|
M42X1.5-8
|
4
|
|
87
|
Bush
|
G20.26B
|
4
|
|
88
|
Connecting rod bolt
|
G20.13
|
4
|
|
89
|
Disc
|
25
|
4
|
|
90
|
Spring washer
|
B24
|
4
|
|
91
|
Hex. nut
|
M24X1.5-8
|
4
|
|
95
|
Pin
|
E36.65A
|
4
|
|
96
|
Pin
|
2E32.63A
|
4
|
|
97
|
Pin
|
2E33.62
|
4
|
|
110
|
Cover
|
E36.50B
|
4
|
|
111
|
Serrated lock washer
|
FZA16,5
|
16
|
|
112
|
Allen-bolt
|
M16X35DIN6912-10.9
|
16
|
|
113
|
Grease nipple
|
R1/4Z
|
10
|
|
115
|
Piston rod
|
JT30.06A
|
4
|
|
116
|
Seal kit
|
HZS-DS.52
|
4
|
|
118
|
Piston rod bush
|
U21.822, E36.52*
|
4
|
|
123
|
Piston
|
JT30.24A
|
4
|
|
124
|
Threaded pin
|
M6X16
|
4
|
|
125
|
Cylinder pin
|
6M6X16
|
4
|
|
126
|
Piston screw
|
E36.48
|
2
|
|
-
|
Hydraulic motors
|
HY916N630
|
1
|
