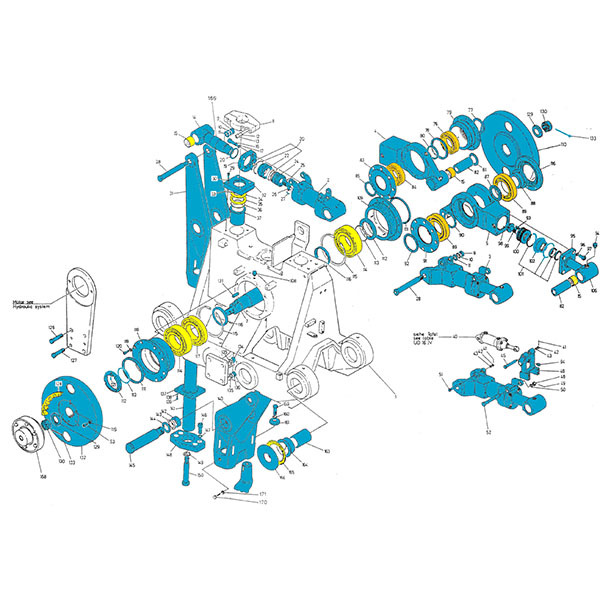

Tamping Unit Parts Duomatic 08-32 , 07-32

Description

Pos. No.	Description	Part Number	Req’d
2	Closing cylinder	2E34.201B	2
2	Cylinder - set	HZSA-A.150.245,	2
2	Cylinder - set	HZSA-A.235.268*	2
3	Closing cylinder	2E34.41A	2
3	Cylinder - set	HZSA-G.150.246,	2
3	Cylinder - set	HZSA-G.235.269*	2
4	Closing cylinder	2E34.202B	2
4	Closing cylinder - set	HZSI-A.63.402,	2
4	Closing cylinder - set	HZSI-A.57,5.404*	2
5	Closing cylinder	2E33.21	2
5	Closing cylinder - set	HZSI.G.63.401,	2
5	Closing cylinder - set	HZSI-G.57,5.403*	2
7	Vibration shaft	DL23.401	1
9	Hex. Nut	M24X1,5DIN934-8	12
10	Spring washer	B24DIN127	12
11	Disc	25DIN1440	12
14	Piston rod	2E34.42A	4
14	Piston rod - set	HZSA-K.245	4
16	Hex. socket head cap screw	M16X35-10.9	16
17	Lock washer	VS16	16
19	Cover	2E34.50	4
20	Seal kit	HZS-DS.243	4
22	Piston rod bush	2E34.231	4
24	Piston	2E36.443	4
25	Cylinder pin	6M6X32DIN7	4
26	Piston screw	2E36.48	4
27	Threaded pin	M6X18DIN915	4
28	Connecting rod bolt	G20.13	12
29	Hex. socket head cap screw	M12X30-8,8	8
30	Spring washer	12DIN7980	8
31	Tamping arm	2E34.212A	4
32	Cover	DL12.05	2
33	Gasket	DL12.08	4
36	O-Ring	86X6	4
37	Bush	DL12.06	4
42	Castle nut	M10X1DIN937-6	-
43	Disc	10DIN1440	-
45	Pin	2E32.63A	4
46	Flap stop	2E33.70	4
48	Castle nut	M14X1,5DIN937-6	4
50	Disc	14DIN1440	4
51	Pin	2E33.65	4
52	Pin	2E33.62	4
77	Spacer tube	2E22.06	2
78	Spacer ring	2E22.12	2
79	Flange	2E22.11, DL22.11	2
80	Spacer ring	2E22.07	2
81	Disc	2E34.228	4
82	Bush	G20.26B	12
83	Cover	2E22.16	2
85	Spacer ring	2E22.26	2
86	Cover	2E22.15	4
87	Spacer ring	2E22.08A	2
88	Flange	2E22.09	2
90	Spacer ring	2E22.05A	2
91	Cover	2E22.15	4
92	Spacer ring	2E22.04A	2
93	Cylinder pin	6M6X16DIN7	4
94	Grease nipple	R1/4ZDIN3404-M1	32
95	Cover	2E35.314	4
96	Toothed disc	FZI16,5DIN6797	16
97	Hex. socket head cap screw	M16X35-10.9	16
98	Threaded pin	M6X8DIN914-45H	4
99	Piston screw	2E36.48	4
100	Piston	2E35.303	4
101	Seal kit	HZS-DS.401	4
102	Bearing bush	2E33.25	4
106	Piston rod	2E35.306	4
106	Piston rod - set	HZSI-K.401	4
108	Filter	FLE-001/4”	1
109	Flange	DL23.103A	1
110	Flywheel	2E22.10A	1
111	Seal ring	BA130-165-13	2
112	Spacer ring	DL23.108	2
113	O-ring	98.02X3,53	2
115	Circlip	I180DIN472	2
116	Spacer ring	DL23.107	2
118	Flange	DL23.104	1
119	Spring washer	10DIN7980	80
120	Hex. socket head cap screw	M10X25-8.8	80
121	Rivet	5X8	2
126	Hex. bolt	M20X75-10.9	2
127	Adjusting screw	G60.45A	2
129	Disc	2E22.35	2
130	Castle nut	2E22.36	2
131	Fittink key	2E22.31	4
132	Flywheel	U21.01	1
133	Split pin	8X80	2
134	Hex. nut	M20X1,5	2
136	Hex. nut	M20-8	2
137	Cover	DL12.51	2
138	Spring washer	8DIN7980	8
139	Hex. socket head cap screw	M8X20-8.8	8
140	Tamping arm	2E34.213A	4
141	Guide column	E62.03	2
142	Hex. nut	M42X1,5-8	8
143	Spring washer	B42DIN127	8
144	Disc	2E32.05	8
145	Pin	2E31.04	8
146	Hex. Socket head cap screw	M20X40-8.8	8
147	Spring washer	B20	8
148	Mounting bracket	E61.04	2
150	Adjusting screw	E60.08AAS	2
159	Hex. bolt	M20X50-10.9	16
161	Disc	2E31.19ART	16
163	Spacer sleeve	2E31.02A	8
164	Bush	2E34.210	16
166	Disc	2E34.211	16
169	Spacer ring	2E34.55	4
