—— Product Description ——

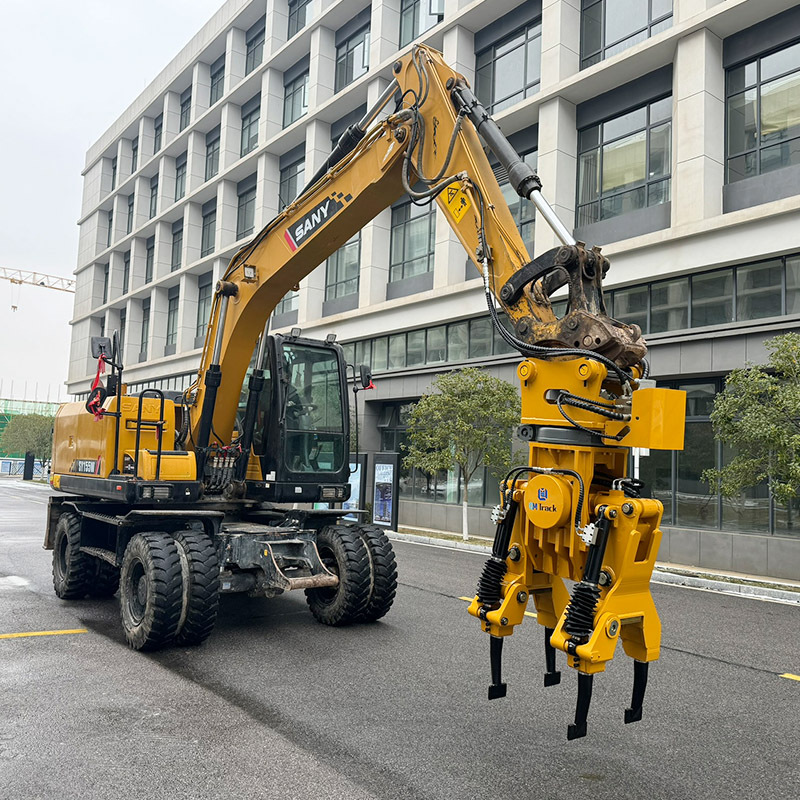

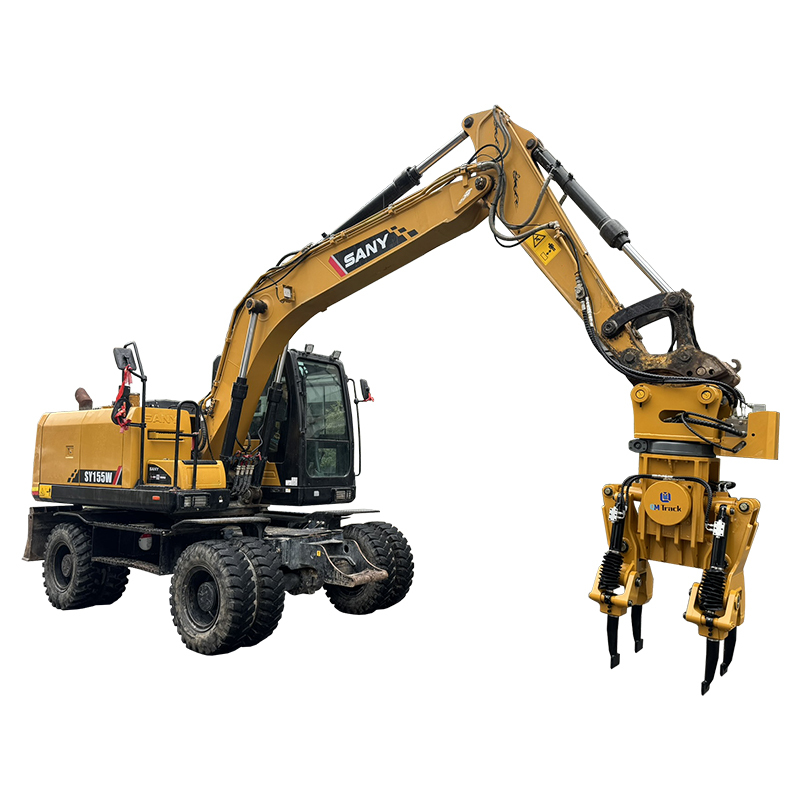

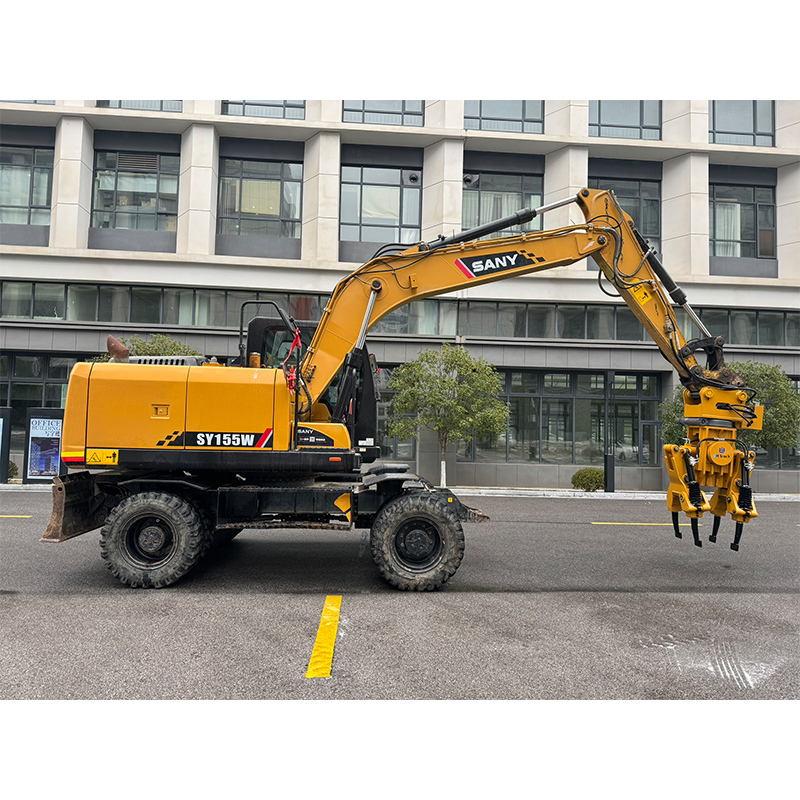

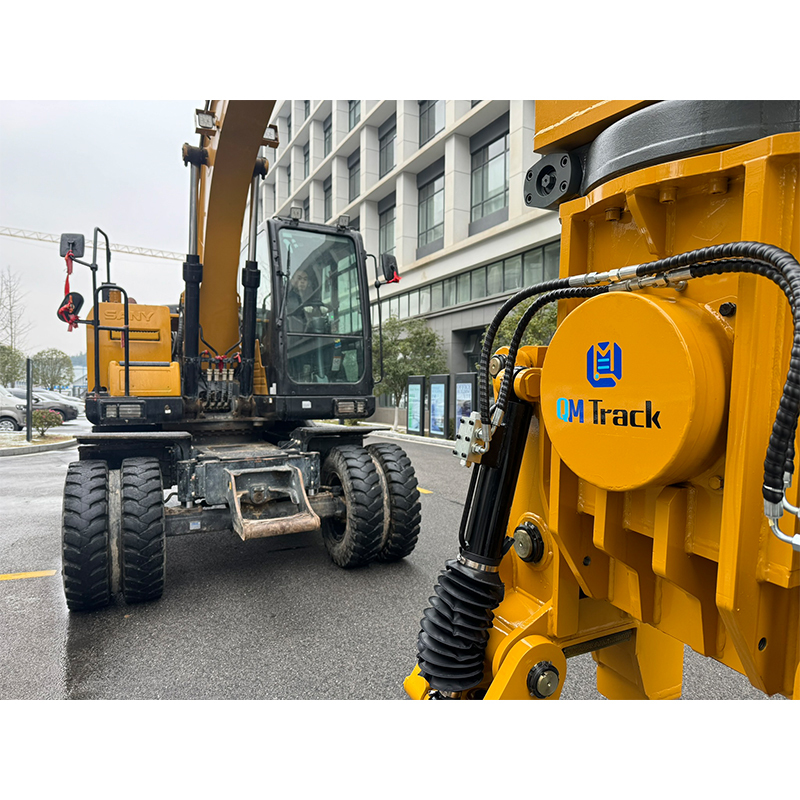

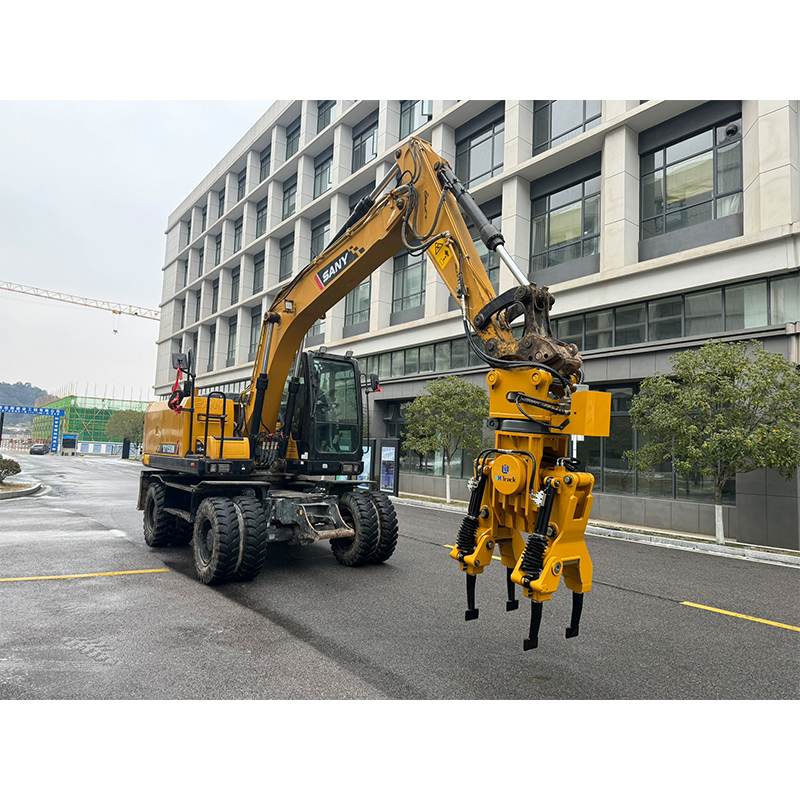

The QM-DG-DD15A Railroad switch ballast tamper is used for tamping operations during the laying of new tracks and after the renovation of existing tracks. It utilizes a dual-purpose road-rail excavator equipped with tamping attachments, with four tamping picks simultaneously tamping, effectively improving construction efficiency. The average operating rate reaches 150 m/h. The device features 360° rotation and operation adjustment, providing flexible movement and enabling simultaneous tamping of tracks and switches. The integrated control module allows for quick interchange with ballast removal attachments, sleeper changing attachments, and a bucket, enabling highly efficient multi-functional excavator operation.
—— Technical Parameters ——
|
Brand
|
QM Track
|
|
Parts number
|
QM-DG-DD15A
|
|
Applicable track gauge
|
1000/1435/1520
|
|
Applicable tonnage
|
13-20Ton
|
|
Vibration frequency
|
30-35Hz
|
|
Number of tamping head
|
4pcs
|
|
Temperature range
|
-20 ℃～+50 ℃
|
|
Rail type
|
50kg/m, 60kg/m, 75kg/m rail
|
|
Sleeper configuration
|
1660 to 1920 Type II or Type III concrete sleepers or 200m wide wooden sleepers
|
|
Rotation Angle
|
360℃
|
|
Size
|
1000 × 750 × 1800mm
|
|
Eccentric vibration shaft speed
|
2200r/min
|
|
Tamping head amplitude
|
5mm
|
|
Tamping depth
|
550mm below the rail top surface
|
|
Main engine hydraulic system working pressure requirements
|
28MPa
|
|
Main engine hydraulic flow requirements
|
100L/min
|
|
Work efficiency
|
120pcs/hours |
