During new track laying and heavy maintenance of existing lines, ballast tamping efficiency and equipment flexibility directly affect project schedules and operational safety. The specially designed Railroad Switch Ballast Tamper – built on a dual‑purpose road‑rail excavator platform with a quick‑coupler attachment system – is becoming the first choice for many railway construction and maintenance contractors.
This equipment uses a dual‑purpose road‑rail excavator fitted with tamping attachments. 4 tamping picks or 8 tamping picks work simultaneously, significantly improving construction efficiency. Key technical parameters:
Average operating rate: 150 m/h
Mobility & adjustment: 360° rotation and fine‑tuned operation control
Application scope: capable of tamping both plain line track and turnouts (switches) with the same machine
The integrated control module allows rapid switching between tamping and other work modes. One‑click interchange is supported for the following attachments:

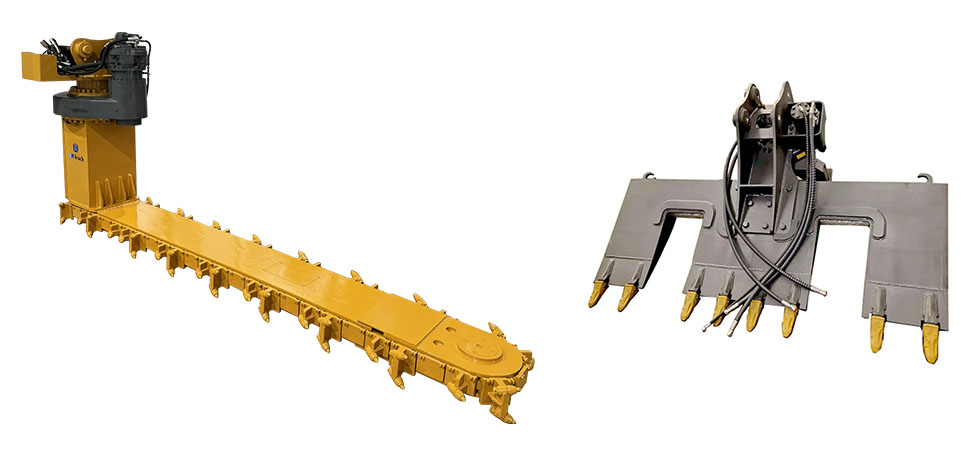

Ballast removal attachment
Sleeper changing attachment
Standard bucket
With this design, a single road‑rail excavator can complete tamping, ballast cleaning, sleeper replacement, and digging – greatly reducing equipment shunting and idle time during maintenance windows. This achieves truly efficient multi‑functional excavator operation.
For customers who already own a suitable carrier machine, we offer attachment‑only procurement. The attachment requires a base machine with the following specifications:
Base machine weight: 13.5 – 15.5 tonnes
Engine power: > 110 kW
Hydraulic system: capable of independently supplying 200 L/min flow
Maximum working pressure: 28 MPa
Any road‑rail excavator (or standard excavator modified for rail operation) meeting these requirements can be fitted with this tamping unit.
To suit different customer needs and existing equipment, we offer four options (A, B, C, D):
| Option | Type | Composition | Key Feature |
|---|---|---|---|
| A | Complete machine | Wheeled road‑rail base machine + Double‑track 8‑tine tamping unit (4 tines liftable for turnout operation) | Wheeled travel, fast transfer speed – ideal for frequent cross‑zone jobs |
| B | Complete machine | Crawler road‑rail base machine + Double‑track 8‑tine tamping unit (4 tines liftable for turnout operation) | Crawler tracks, low ground pressure – suitable for loose ballast or graded sections |
| C | Attachment only | Double‑track 8‑tine tamping unit (4 tines liftable for turnout operation). Customer supplies own base machine | Recommended for those with a compliant base machine – lowest investment cost |
| D | Attachment only | Single‑track 4‑tine tamping unit (2 tines liftable for turnout operation). Customer supplies own base machine | For lighter duty or slightly lower capacity carrier machines |
Note: Options A and B deliver a complete, ready‑to‑use machine. Options C and D supply the tamping unit only; customers must verify that their base machine meets the compatibility requirements above.
If you do not yet have a suitable base machine, choose Option A (wheeled) or Option B (crawler) depending on site road conditions and transfer frequency.
If you already own a road‑rail excavator meeting the weight and hydraulic requirements, Option C gives you the best economy while adding tamping capability.
If your carrier has slightly lower capacity, or you mainly work on single track or light turnouts, Option D still provides a significant efficiency boost.
For technical drawings, hydraulic interface dimensions, or field application case studies, please leave a message or contact our technical team. Integrate professional turnout tamping capability into your fleet quickly – and make every maintenance window count.
